PCB Fabrication

1-18 Layers PCB Boards, HDI, FPC

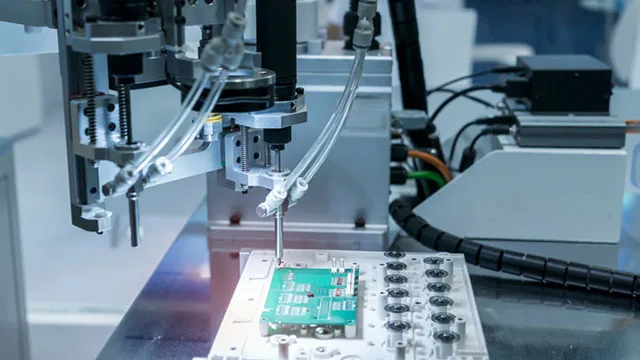

AS a professional PCB manufacturer in China started in 2003, until now we have produced all kinds of PCBs including FR4, FR1, CEM1, FPC, Metal Core PCB and Rogers PCB, etc. With the advantage of material and component sourcing channels, we have the ability of fast PCB sample–48 hours after order confirmation.

PCB Specifications

PCB layer	1, 2, 4 or 6, up to 18 layers
Board shape	Rectangular, round, slots, cutouts, complex, irregular
Board type	Rigid, flexible, rigid-flexible
Board material	FR-4 glass epoxy, FR4 High Tg, RoHS compliant; Aluminum, Rogers, etc.
Board cutting	Shear, V-score, tab-routed
Board thickness	0.2 ~ 4.0 mm (±10%), Flex board: 0.01 ~ 0.25″ (±10%)
Copper weight	1.0, 1.5, 2.0 Oz (tolerance ±0.25 oz)
Solder mask	Double-sided green LPI, Also support red, white, yellow, blue, black
Silk screen	Double-sided or single-sided in white,yellow, black, or negative
Silk screen min. line width	0.006″ or 0.15mm
Max board dimension	20 inch 20 inch or 500mm500mm
Min. trace/gap	0.10mm, or 4 mils
Min. drill hole diameter	0.01”, 0.25mm, or 10 mils
Surface finish	HASL, Nickle, Imm Gold, Imm Tin, Imm Silver, OSP etc
Min.slot width	0.12”, 3.0 mm, or 120 mils
V-score depth	20-25% of board thickness
Plated through holes	Yes
Design file format	Gerber RS274X, 274D, Eagle and AutoCAD’s, DXF, DWG, Protel 99se

Fast Delivery

Order Types/PCB Layers	1/2-layer	4-layer	6-layer	Above 8-layer	HDI
Normal Sample Orders	5-6 days	6-7 days	7-8 days	10-12 days	15-20 days
Fast Sample Orders	48-72 hours	5 days	6 days	6-7 days	12 days
First Batch Orders	7-9 days	10-12 days	13-15 days	16 days	20 days
